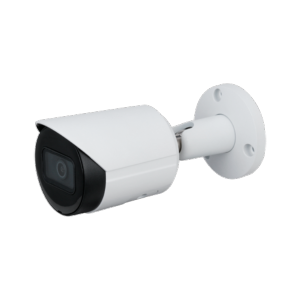

XS-IPB619SWH-8P
Cámara Bullet IP X-Security
8 Megapixel (3840x2160)
Lente 2.8 mm
PoE / H.265+ / IR
Impermeable IP67
Interfaz WEB, CMS (DSS/ PSS), Smartphone y NVR
DESCRIPCIÓN
X-Security
Cámara IP
1/2.7" Progressive CMOS
Starlight
8 Megapixel (3840x2160)
Lente 2.8 mm
0 Lux
IR Array Alcance 30 m
Compresión H.265+/H.265/H.264+/H.264
RJ-45 10/100 BaseT
PoE IEEE802.3af
Impermeable IP67
WDR
IR CUT
Grabación en tarjeta SD
Interfaz WEB, CMS (DSS/ PSS), Smartphone y NVR
Compatible con ONVIF
Ranura para tarjeta SD
ESPECIFICACIONES
Marca |
X-SECURITY |
Sensor de imagen |
1/2.7” Progressive CMOS |
Resolución máxima |
8 Megapixel (3840x2160) |
Tasa Main Stream |
3840x2160 (15 FPS), 2688 × 1520 (25/30 FPS) |
Tasa Extra Stream |
704x576 (1 ~ 25 FPS), 704x480 (1 ~ 30 FPS) |
Compresión |
H.265+/H.265/H.264+/H.264 |
Lente |
2.8 mm (H: 105º)(V:56º) |
Iluminación mínima |
0.009 Lux (Color) F2.0 |
Iluminación infrarroja |
0 Lux / LEDs IR (30 m) |
Mejoras de imagen |
WDR, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
Videoanálisis |
Cruce de línea | Intrusión en área |
Día / Noche |
Filtro mecánico ICR removible |
Interfaz de red |
Ethernet 10/100 BaseT |
Alarma |
No dispone |
Audio |
No dispone |
Almacenamiento |
Ranura para tajeta SD de hasta 256GB |
Acceso remoto |
Interfaz WEB, CMS (DSS/PSS), Smartphone y NVR |
Interoperabilidad |
ONVIF |
Alimentación |
DC 12 V / 458 mA, PoE IEEE802.3af |
Temp. funcionamiento |
-40º C ~ +60º C |
Grado de protección |
Impermeable IP67 |
Dimensiones |
166 mm (Fo) x 70 (Ø) mm |
Peso |
480 g |
CONTENIDO DE LA CAJA
Cámara IP X-SECURITY
3 tacos y 3 tornillos para montaje
Plantilla de instalación
Instrucciones de uso |
