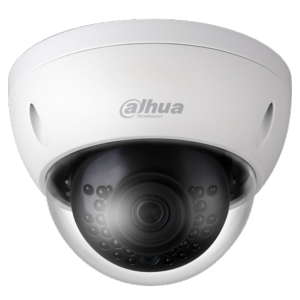

Cámara IP 3 Megapixel
1/3” Progressive CMOS
Compresión H.264 / MJPEG
Lente 2.8 mm
WEB, DSS/PSS, Smartphone y NVR
Cámara IP
1/3” Progressive CMOS
3 Megapixel (2048x1536)
Lente 2.8 mm
0 Lux
IR Alcance 30 m
Compresión H.264 / MJPEG
RJ-45 10/100 BaseT
PoE IEEE802.3af
Impermeable IP67
IR CUT
Interfaz WEB, CMS (DSS/ PSS), Smartphone y NVR
Compatible con ONVIF
Serie Lite, cámara IP especialmente económica
ESPECIFICACIONES
Sensor de imagen |
1/3” Progressive Scan CMOS |
Resolución máxima |
3 Megapíxel (2048x1536) |
Tasa Main Stream |
3M (1 ~ 20fps) / 1080P (1 ~ 25fps) |
Tasa Extra Stream |
VGA (1~25 FPS) |
Compresión |
H.264 / MJPEG |
Bitrate |
4 Kbps ~ 8192 Kbps |
Lente |
2.8 mm |
Iluminación infrarroja |
0 Lux / LEDs IR (30 m) |
Mejoras de imagen |
DWDR, BLC, HLC, AWB, AGC, 3D-NR, Privacy Masking |
Día / Noche |
Auto Filtro ICR removible |
Interfaz de red |
Ethernet 10/100 BaseT |
Acceso remoto |
Interfaz WEB, CMS (DSS/PSS), Smartphone y NVR |
Interoperabilidad |
ONVIF |
Alimentación |
DC 12 V / 450 mA, PoE IEEE802.3af |
Grado de protección |
Impermeable IP67, IK10 |
Temp. funcionamiento |
-30º C ~ +50º C |
Dimensiones |
81 (Fo) x 110 (Ø) mm |
Peso |
550 g |
CONTENIDO DE LA CAJA
Cámara domo antivandálica
3 tacos y 3 tornillos para montaje
Llave Allen
Instrucciones de uso
Plantilla de instalación
Junta estanca para RJ-45 |
